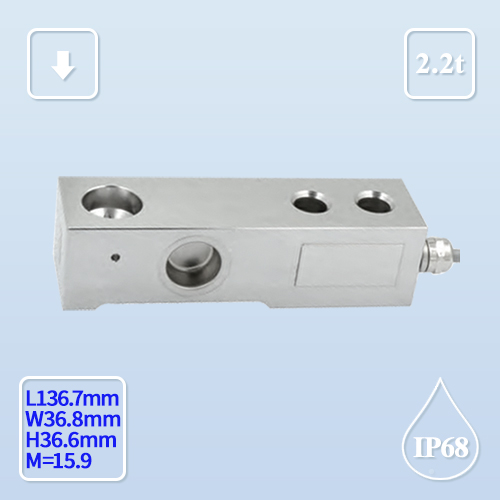

特点与用途/Features & Applications
悬臂式结构，适用于多台组合使用
合金钢/不锈钢材料可选
单台量程50kg至10t可选
产品应用：适用于料罐，配料，平台秤和水平监控等场合

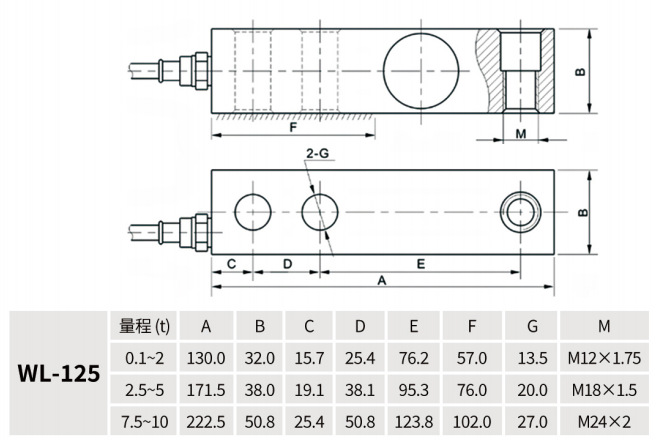

安装尺寸/Mounting Dimension
参数/Specifications 技术指标/Technique
| 额定容量 | Capacity | 100/200/500kg，1/2/2.5/3/5/7.5/10t |
| 输出灵敏度 | Rated output | 2.0±0.005/3.0±0.005mV/V |
| 零点输出 | Zero balance | ±1%F.S. |
| 非线性 | Non-linearity | 0.02%F.S. |
| 滞后 | Hysteresis | 0.02%F.S. |
| 重复性 | Repeatability | 0.01%F.S. |
| 蠕变(30min) | Creep(30min) | 0.02%F.S. |
| 温度灵敏度漂移 | Temp.effect on output | 0.02%F.S./10℃ |
| 零点温度漂移 | Temp.effect on zero | 0.02%F.S./10℃ |
| 输入电阻 | Input impedance | 385±10 |
| 输出电阻 | Output impedance | 350±3 |
| 绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
| 激励电压 | Recommended excitation | 10~15V |
| 最大激励电压 | Maximum excitation | 15V |
| 温度补偿范围 | Compensated temp range | -10~50℃ |
| 工作温度范围 | Operation temp range | -20~60℃ |
| 安全超载 | Safe overload | 150%F.S. |
| 极限超载 | Ultimate overload | 300%F.S. |
| 电缆线尺寸 | Cable size | φ5.4×6000/10000mm |
| 防护等级 | IP Class | IP68 |
