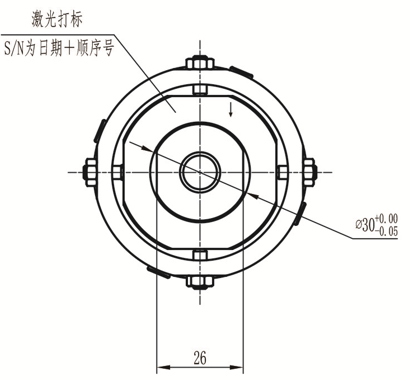

安装尺寸/Mounting Dimension
特点与用途/Features & Applications
l张力测量传感器, 不锈钢材质,稳定性强
l结构紧凑便于安装,
lIP67防护等级,适用于各种环境,
l广泛用于:硅片切割机,蓝宝石切割,晶体切割、金属线、光纤、碳纤维等各种线材在线张力检测
lTension measurement load cell with stainless steel and stable ability
lCompact design and easy to install
lIP67 protection, suitable for various testing environment
lWidely used in: silicon wafer cutting machine, sapphire cutting, crystal cutting, metal wire, fiber, carbon fiber, etc.
受力方式/Load Direction
配线图/Wiring Code
参数 | Specifications | 技术指标/Technique |
额定容量 | Capacity | 5,10,20kg |
输出灵敏度 | Rated output | 2.0mV/V |
零点输出 | Zero balance | ±0.05 mV/V |
非线性 | Non-linearity | 0.03%F.S. |
滞后 | Hysteresis | 0.03%F.S. |
重复性 | Repeatability | 0.03%F.S. |
蠕变(30min) | Creep(30min) | 0.02%F.S. |
温度灵敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
零点温度漂移 | Temp.effect on zero | 0.03%F.S./10℃ |
输入电阻 | Input impedance | 385±20Ω |
输出电阻 | Output impedance | 350±10Ω |
绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
激励电压 | Recommended excitation | 5~15V |
最大激励电压 | Maximum excitation | 20V |
温度补偿范围 | Compensated temp range | -20~70℃ |
工作温度范围 | Operation temp range | -30~85℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 200%F.S. |
电缆线尺寸 | Cable size | Φ4×4000mm Black cable |
防护等级 | IP Class | IP67 |
