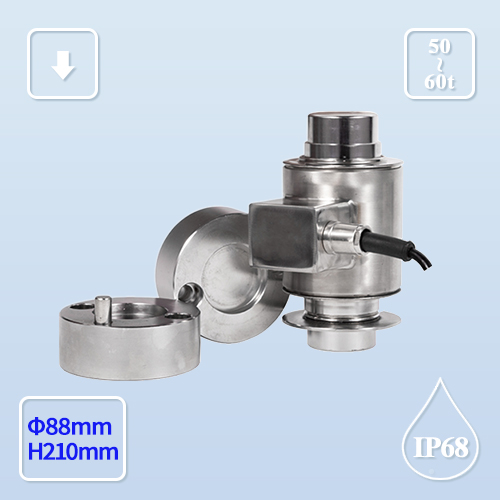

特点与用途/Features & Applications
摇臂柱式设计结构，精度高
防旋转设计，安装便捷
满足重型配料，料仓监测等大型称重应用
产品应用：适用于电子汽车衡、轨道衡、料斗秤及各类电子称重设备

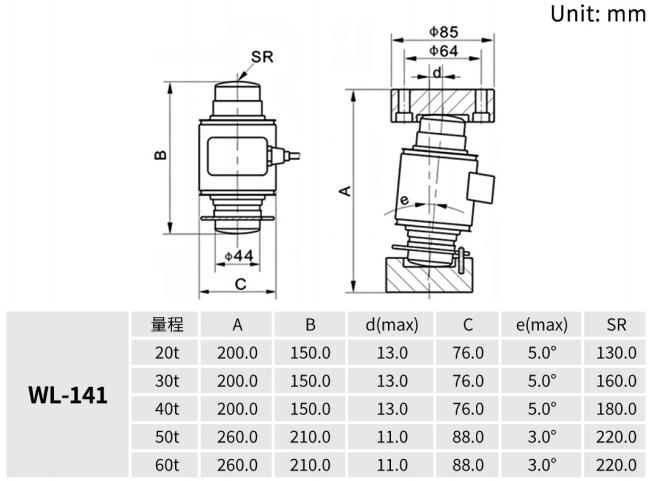

安装尺寸/Mounting Dimension
参数/Specifications 技术指标/Technique
| 额定容量 | Capacity | 20/30/40/50/60t |
| 输出灵敏度 | Rated output | 2.0±0.005mV/V |
| 零点输出 | Zero balance | ±1%F.S. |
| 非线性 | Non-linearity | 0.03%F.S. |
| 滞后 | Hysteresis | 0.02%F.S. |
| 重复性 | Repeatability | 0.01%F.S. |
| 蠕变(30min) | Creep(30min) | 0.02%F.S. |
| 温度灵敏度漂移 | Temp.effect on output | 0.02%F.S./10℃ |
| 零点温度漂移 | Temp.effect on zero | 700.02%F.S./10℃ |
| 输入电阻 | Input impedance | 390±5 |
| 输出电阻 | Output impedance | 700±5 |
| 绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
| 激励电压 | Recommended excitation | 5~15V |
| 最大激励电压 | Maximum excitation | 15V |
| 温度补偿范围 | Compensated temp range | -10~50℃ |
| 工作温度范围 | Operation temp range | -20~60℃ |
| 安全超载 | Safe overload | 120%F.S. |
| 极限超载 | Ultimate overload | 200%F.S. |
| 电缆线尺寸 | Cable size | φ6×900mm |
| 防护等级 | IP Class | IP68 |
