B119B-博兰森-环形测力传感器

产品详情

B119B-博兰森-环形测力传感器

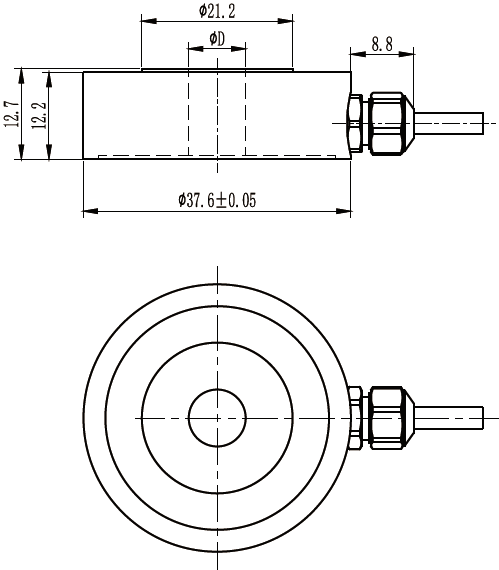

安装尺寸/Mounting Dimension



注:内孔和量程可自由匹配

Note: ФD and capacity can be freely matched.

特点与用途/Features & Applications

l外形尺寸小

l不锈钢/合金钢材料

螺纹力的监测

汽车压装、自动化组装、3C产品测试、新能源产品组装、医疗检测、机器人领域,模具组装及其他工业测试、测量及控制系统

lLow profile with small dimension

lMade of stainless steel or Alloy steel

lMainly used for monitoring of thread force

lSuitable forAutomotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control ling systems

受力方式/Load Direction


参数

Specifications

技术指标/Technique

额定容量

Capacity

0.5,1,2,5,10,20

输出灵敏度

Sensitivity

1.5±10%mV/V

零点输出

Zero balance

±0.03 mV/V

非线性

Non-linearity

0.1%F.S.

滞后

Hysteresis

0.1%F.S.

重复性

Repeatability

0.05%F.S.

蠕变(30min

Creep(30min)

0.05%F.S.

温度灵敏度漂移

Temp.effect on sensitivity

0.05%F.S./10

零点温度漂移

Temp.effect on zero signal

0.05%F.S./10

输入电阻

Input impedance

780±20Ω

输出电阻

Output impedance

700±10Ω

绝缘电阻

Insulation

5000MΩ/100VDC

激励电压

Nominal range of excitation voltage

5~15V

最大激励电压

Maximum excitation voltage

20V

温度补偿范围

Compensated temperature range

-10~60

工作温度范围

Operating temperature range

-20~80

安全超载

Safe load limit

150%F.S.

极限超载

Breaking load

200%F.S.

电缆线尺寸

Cable size

φ4×4000mm

材料

Material

Stainless steel(不锈钢)

防护等级

IP Class

IP67
