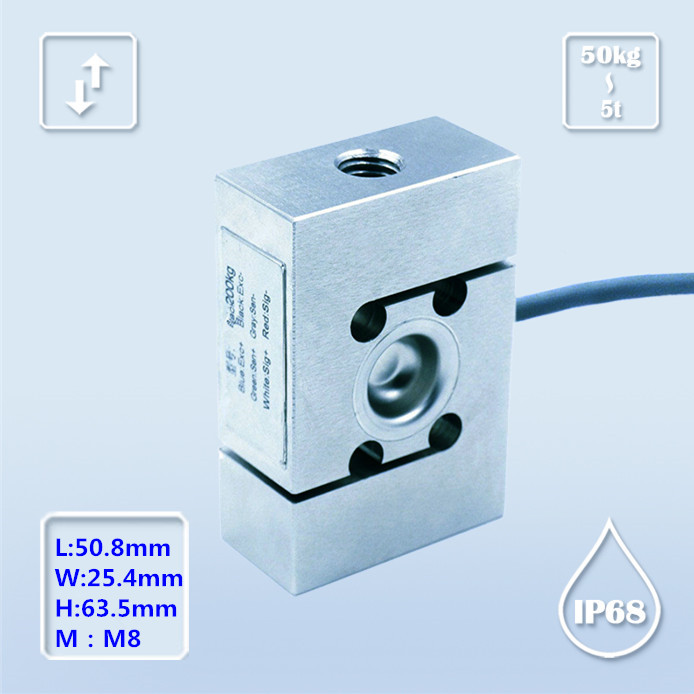

特点与用途/Features & Applications
高度低，变形量小，防护等级高
不锈钢材料
拉压双向
防护等级：IP68，可用于恶劣环境
主要用于推、拉力计，料斗秤，各种工业称重系统等
low profile，small deflection
Made of stainless steel
Tension and compression application
Mainly used for pull and push dynamometer,hopper scale and industrial measuring system
安装尺寸/Mounting Dimension
参数 | Specifications | 技术指标/Technique |
额定容量 | Capacity | 50,100,200,500,1000,2000,3000,5000kg |
输出灵敏度 | Rated output | 2.0±0.25%mV/V |
零点输出 | Zero balance | 0.01mV/V |
非线性 | Non-linearity | 0.018%F.S. |
滞后 | Hysteresis | ±0.018% F.S. |
重复性 | Repeatability | 0.018%F.S. |
蠕变（30min） | Creep(30min) | 0.024%F.S. |
温度灵敏度漂移 | Temp.effect on output | 0.014%F.S./10℃ |
零点温度漂移 | Temp.effect on zero | 0.017%F.S./10℃ |
输入电阻 | Input impedance | 350±5Ω |
输出电阻 | Output impedance | 350±5Ω |
绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
激励电压 | Recommended excitation | 5~15V |
最大激励电压 | Maximum excitation | 20V |
温度补偿范围 | Compensated temp range | -10~40℃ |
工作温度范围 | Operation temp range | -30~70℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 300%F.S. |
电缆线尺寸 | Cable size | Φ5.4×3000mm |
材料 | Material | Stainless Steel（不锈钢） |
防护等级 | IP Class | IP68 |
受力方式/Load Direction
配线图/Wiring Code
