B306-博兰森-拉压双向力传感器

产品详情

B306-博兰森-拉压双向力传感器

特点与用途/Features & Applications

  变形量小,量程大

  不锈钢材料

  拉压双向

  主要用于汽车压装、自动化组装、3C产品测试、新能源产品组装、医疗检测、机器人领域,模具组装及其他工业测试、测量及控制系统

  动态响应频率高

  Small deflection with big capacity

  Made of stainless steel

  Tension and compression applications

  Mainly used for automotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system

  High dynamic response frequency

安装尺寸/Mounting Dimension

参数

Specifications

技术指标/Technique

额定容量

Capacity

1,2,5,10,20kN

输出灵敏度

Rated output

1.5±10%mV/V

零点输出

Zero balance

±0.03 mV/V

非线性

Non-linearity

0.2%F.S.

滞后

Hysteresis

0.1%F.S.

重复性

Repeatability

0.1%F.S.

蠕变(30min)

Creep(30min)

0.05%F.S.

温度灵敏度漂移

Temp.effect on output

0.05%F.S./10℃

零点温度漂移

Temp.effect on zero

0.05%F.S./10℃

输入电阻

Input impedance

780±20Ω

输出电阻

Output impedance

700±10Ω

绝缘电阻

Insulation

≥5000MΩ/100VDC

激励电压

Recommended excitation

5~15V

最大激励电压

Maximum excitation

20V

温度补偿范围

Compensated temp range

-10~60℃

工作温度范围

Operation temp range

-20~80℃

安全超载

Safe overload

150%F.S.

极限超载

Ultimate overload

200%F.S.

电缆线尺寸

Cable size

Φ4×4000mm

单件重量

Weight approx.

0.3kg

材料

Material

Stainless Steel(不锈钢)

防护等级

IP Class

IP67

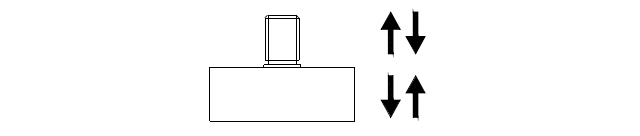

受力方式/Load Direction

配线图/Wiring Code
